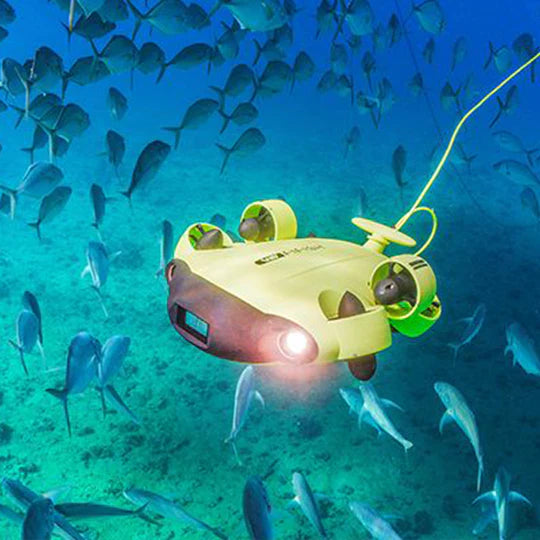

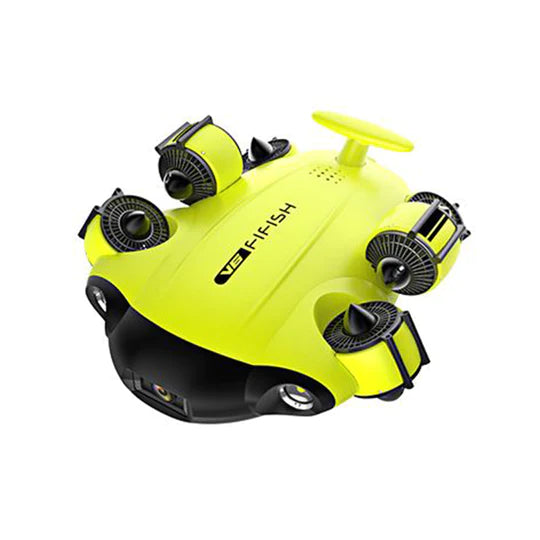

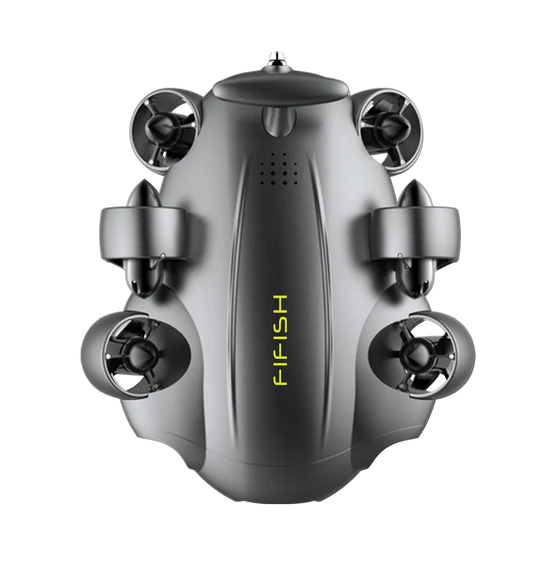

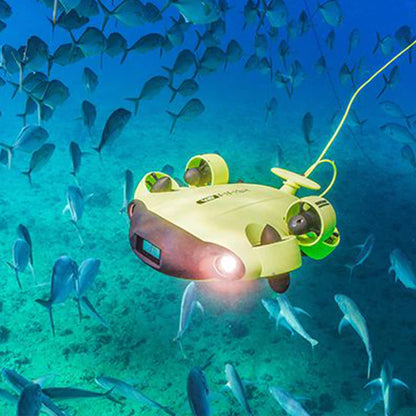

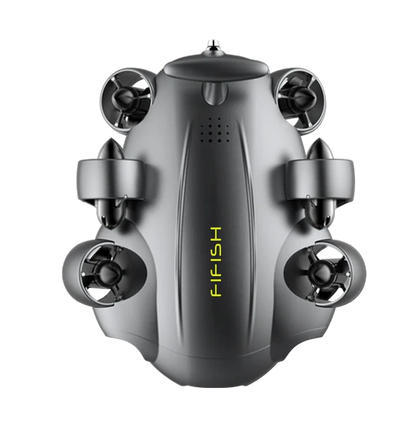

US EU STOCK FIFISH V6E Underwater Drone 100M Cable 4K UHD Camera VR Control Underwater camera
We give you complete freedom below the surface.
V6 has the 6 DOF (degrees of freedom).
6 DOF’s most simple moving elements are following,
1. Moving up and down (elevating/heaving)
2. Moving left and right (strafing/swaying)
3. Moving forward and backward (walking/surging)
4. Swivels left and right (yawing)
5. Tilts forward and backward (pitching)
6. Pivots side to side (rolling)
The combination movement is the combo of moving
elements. For example,
lateral = 2
arc = 2 + 4
roll and nose down dive = 3 + 6 (in manual mode)
spiral = 3 + 4 + 1 (in attitude mode)
spiral = 3 + 5 + 4 (in manual mode)
• These ultimate movements can produce the
astonishing contents in the experienced hands
| ROV |
Dimension & Weight
|
383 mm × 331 mm × 143mm (15 in × 13 in × 5 5/8 in), 4.2 kg (9 1/4 lbs )Thruster
|
|
Maneuverability
Posture Lock™
Depth Holding
|
6 DOF (Degree of Freedom):
Moving: left & right, up & down, forward & backward
Rotation: 360yaw, 360pitch, 360roll
Able to lock the * 0.1pitch angle or * 0.1roll angle and moving in any direction (See note 1)
Able to keep the ROV suspending in * 1 cm
|
|
|
Speed
Depth Rating
100 m (328 ft)
Operating
Temperature
|
Maximum 3 knots (1.5 m/s) in still water
-10 C ~ 60 C (14 F ~ 140 F)
|
|
|
Diving Time
Camera
Sensor
|
Up to 4 hours, quick charge in 1 hour, Panasonic 18650 Lithium Battery Battery Capacity 9000 mAh / 97.2Wh
1/2.3” SONY CMOS, 12 MP Effective Pixels, ISO 100-6400
|
|
| camera |
Video Resolution
|
4K UHD: 25/30 fps
1080P FHD: 25/30/50/60/90 fps
720P HD: 25/30/50/60/100/120 fps
|
|
Video Format
Color Encoding
Internal Storage
|
MPEG4- AVC/H.264, HEVC/H.
NTSC and PAL
64GB Standard
|
|
|
Remote Controller
Tether
APP
|
LEDs
Wireless
LIVE & Download
Length
Compatibility
|
4000 lumen Brightness, 5500 K CCT
Wi-Fi Supported HD-MI output, Micro SD
Standard 100 m (328 ft) on Spool, Breaking Force 100 kgf
iOS 10.0.0 or later, Android 5.0 or later
|
|
Accessories
|
Spool
VR Goggle
|
Standard
Standard
|
What Accessories do you need ? contact us Got price to buy.
